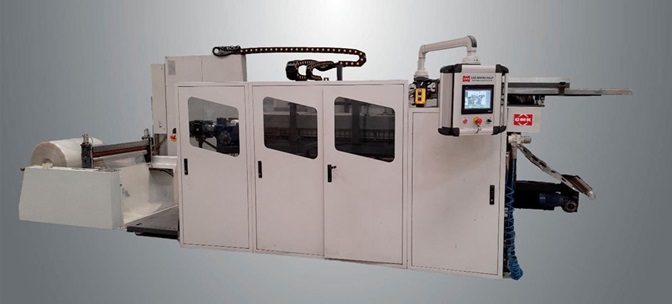

CMK 73-30 Lid and Plate Machine

CMK 73-30 Lid and Plate Machine

Main Technical Specifications

• Max. Mold Area: 940 x 340 mm
• Max. Forming Area: 700 x 300 mm
• Max. Product Height: 25 mm
• Machine Dry Cycle: 30/min
• Max. Sheet Width: 750 mm
• Max. Sheet Thickness: 0.2 – 1.6 mm
• Operating Air Pressure: 8 Bar
• Required Cooling Capacity: 30,000 kcal/hour
• Required Compressor Capacity: 3 m³/min
• Total Power Consumption: 40-45 kW
• Applicable Materials: PP, PS, PET

Machine Components

• AC Motor and Reducer: YILMAZ
• Pneumatic Group: SMC
• Servo System: MITSUBISHI
• Lubrication Unit: LUBRIMAC
• Electrical Parts: SCHNEIDER & MITSUBISHI
• Control Panel: MITSUBISHI
